Concrete

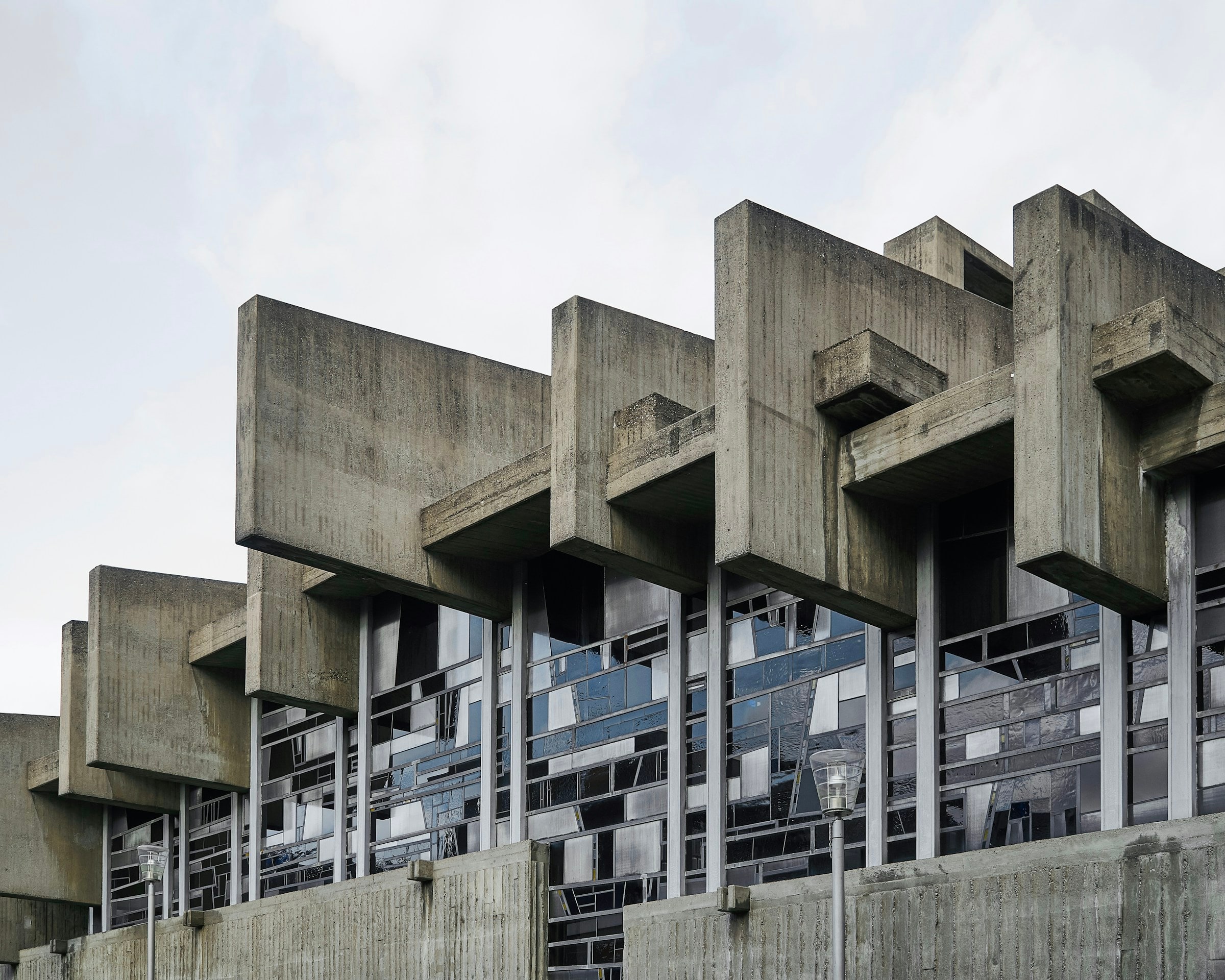

Illustrative reference photograph: Exposed concrete facade with projecting geometric elements and weathered surfaces. Not an LSP project
Concrete buildings express their construction through aggregate, formwork, texture, exposed structure and repeated precast elements. Those characteristics can be central to a building’s architectural significance. Concrete is also a composite material: the cementitious matrix, aggregate, reinforcement, joints and connections must be understood together. Historic mixes and construction methods vary, so a repair that matches color alone may not be compatible with the original work.
Cracking, spalling and rust staining require investigation of their extent and possible causes before a repair program is established. This guide explains the material relationships behind those observations and the evidence specialists may need. It then considers repair preparation, reinforcement work, finish matching, curing, access and quantity allowances as connected preservation and capital-planning decisions.
01 Materials Science
Material and Construction
Concrete combines a cementitious binder and aggregates; historic examples vary in mix, placement, reinforcement and finish. Cast-in-place construction and precast components have different joints and connection arrangements.
Properties and Behavior
The cementitious matrix, embedded steel, joints and water exposure act together. Original aggregate, formwork texture and surface treatment may contribute to architectural significance. Matching color alone does not establish repair compatibility.
02 Conditions and Investigation
Common Conditions
- Cracking, spalling or exposed reinforcement
- Rust staining and surface loss
- Failed earlier patches, coatings or joints
Deterioration Mechanisms
Possible mechanisms include reinforcement corrosion, carbonation, chloride exposure, moisture and movement. Carbonation can reduce the alkalinity that protects steel. A visible crack does not identify its cause, activity or structural significance.
Investigation and Testing
Specialists may require crack mapping, cover and reinforcement information, selected sounding, corrosion-related tests, petrography or samples. The investigation should distinguish deterioration of the surface from conditions affecting the supporting component.
03 Preservation Treatments and Interventions
Preservation and Repair Considerations
Evaluate local repair, reinforcement treatment, compatible patching and selective replacement through a defined technical assessment. Compare visual mockups and performance requirements with preservation objectives. Protective systems are alternatives to evaluate, not universal remedies.
The applicable preservation objective concerns the property as a whole. The following NPS treatment names are reference headings, not selectable options or automatic recommendations for this material.
- Preservation
- Retain existing fabric through care and limited repair.
- Rehabilitation
- Accommodate compatible use while retaining historic character.
- Restoration
- Depict a documented period, rather than every phase.
- Reconstruction
- Recreate a non-surviving resource from sufficient evidence.
NPS distinguishes the four treatment standards under 36 CFR Part 68, regulatory for applicable Historic Preservation Fund grant-assisted projects, from the Standards for Rehabilitation under 36 CFR Part 67 used for federal historic preservation tax incentives. The accompanying Guidelines are advisory. Tax-credit rehabilitation is not necessarily restoration to a single historical date. NPS treatment framework; tax-credit Rehabilitation Standards.
04 Capital Planning and Owner Decisions
Cost, Procurement and Lifecycle Economics
These are project-budget questions, not price quotations, predicted service lives or a recommendation to select the lowest initial cost. Quantities, unit rates and project assumptions must come from reliable, current project information.
- Initial capital expenditure
- Include removal protection, access, temporary support, occupied-area restrictions and the sequence required for repair preparation and curing. Include investigation, mockups, labor, materials, mobilization and protection before comparing totals.
- Repair versus replacement
- Use the same scope boundaries when comparing alternatives. Separate retained, repaired and replaced quantities, making good and disposal. A low unit rate can conceal different inclusions.
- Schedule and procurement
- Separate repair preparation, reinforcement work, formwork, aggregate and finish matching, curing and mockup costs. Precast replacement adds connection design and fabrication dependencies supplied by the project team.
- Financial risk
- Repair boundaries may expand after unsound material is removed. Compare measured quantities with provisional removal allowances and clearly state what the estimate excludes.
- Lifecycle expenditure
- Consider joint renewal, monitoring, protective-system maintenance and future access. Compare options over a stated analysis period without assuming a fixed repair service life. State the analysis period and maintenance assumptions. Any discounted comparison needs disclosed client-approved rates and consistent treatment of inflation.
- Preservation economics
- Consider fabric retention, required approvals, sample review and documentation. Research potentially relevant incentives separately; eligibility, tax effects and funding are not assumed in the base budget.
- Owner decision
- Request a supported scope, measured quantities, current quotations, access plan, schedule, contingency basis and future maintenance assumptions. Compare uncertainty and historic-material retention as well as the initial expenditure.
Comparison of Possible Interventions
Discuss only alternatives supported by the investigation and preservation objective. Some options may be inappropriate or require prior approval.
| Potential intervention | Initial cost considerations | Long-term considerations |
|---|---|---|
| Maintenance and conservation | Access, specialist labor, trials and limited treatments | Recurring inspection, maintenance and access; effectiveness depends on the actual conditions |
| Localized repair | Preparation, compatible materials, sample work and making good | Repair compatibility, possible recurrence and future maintenance |
| Selective replacement | Removal, matching or fabrication, attachment requirements and approvals | Performance assumptions, adjacent retained materials and future repairability |
| More extensive replacement | Wider removal, fabrication quantities, access, temporary work and approvals | Historic fabric loss, replacement-system maintenance and supported renewal assumptions |
